550ml bottle Automatic Sleeve Labeling Machine 2P 220V

Product Categories
Sunrise Intelligent Equipment Co., Ltd
Contact Now

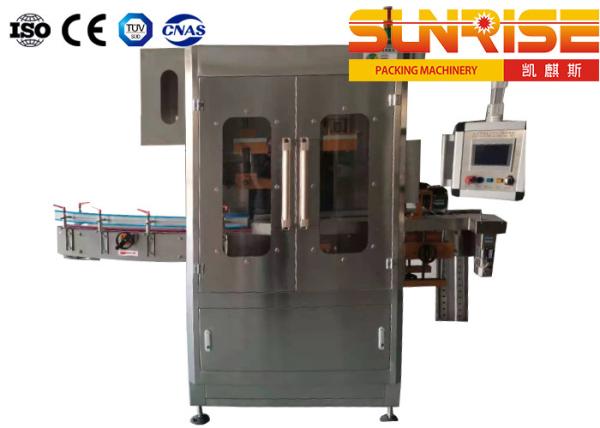

550ml bottle Automatic Sleeve Labeling Machine 2P 220V

Brand Name : SUNRISE

Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO

Place of Origin : Jiangsu, China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 6 units per year

Delivery Time : 120 days

Packaging Details : Standard shipping wooden box or stretch film packaging

Production speed : 200-300 bottles/min

Host size (mm) : 2100L*900W*2000H

Type of label material : PVC / PET / OPS

Applicable bottle type : 550ml

Applicable label length (mm) : 30-220

Applicable label thickness (mm) : 0.03-0.13

Applicable paper tube inner diameter : 5"-10" freely adjustable

Shrinking method : steam shrinking furnace

Input power : 3 KW

Input voltage : 2P 220V 3P 380 v

Contact Now

Automatic Sleeve Labeling Machine

Product Introduction:

>>Steam shrink furnace

The new steam shrinking furnace is suitable for different and irregular round bottles, square bottles, flat bottles and other bottle shapes. It is convenient to adjust and maintain, and the shrinkage is flat. The steam ejection method is evenly distributed in the low-pressure steam drum and adopts seamless steel pipe design. It is three-stage adjustable, and the height, front and back, and air output of each stage can be adjusted separately to achieve the most perfect contraction effect. The whole machine shell is made of stainless steel and insulated, which not only saves energy, but also complies with international safety standards. The stainless steel drain pan at the bottom concentrates condensed water. The whole machine adopts waterproof design and is convenient for operation and maintenance.

Product Properties:

1. Production speed: 200-300 bottles/min
2. Host size (mm): 2100L*900W*2000H
3. Type of label material: PVC / PET / OPS
4. Applicable bottle type: 550ml
5. Applicable label length (mm): 30-220
6. Applicable label thickness (mm): 0.03-0.13
7. Applicable paper tube inner diameter: 5"-10" freely adjustable
8. Shrinking method: steam shrinking furnace
9. Input power: 3 KW
10. Input voltage: 2P 220V 3P 380 v

550ml bottle Automatic Sleeve Labeling Machine 2P 220V550ml bottle Automatic Sleeve Labeling Machine 2P 220V550ml bottle Automatic Sleeve Labeling Machine 2P 220V

>>Steam Generator

This series of fully automatic electric steam generators uses copper-body high-pressure submersible vortex pumps for water intake, which has a short water supply time and is durable. The water tank is equipped with a liquid level float to automatically control the water intake. The working system is fully automatically controlled, and the water source and power supply can be connected for about 5 minutes to continuously output steam, and the working efficiency is extremely high.


Product Tags:

550ml Bottle Automatic Sleeve Labeling Machine



220V Automatic Sleeve Labeling Machine



550ml Bottle shrink sleeve label machine


550ml bottle Automatic Sleeve Labeling Machine 2P 220V Manufactures

550ml bottle Automatic Sleeve Labeling Machine 2P 220V Images
