PET Automatic Liquid Filling Machine , Juice Filling Line 12000BPH

Product Categories
Sunrise Intelligent Equipment Co., Ltd
Contact Now

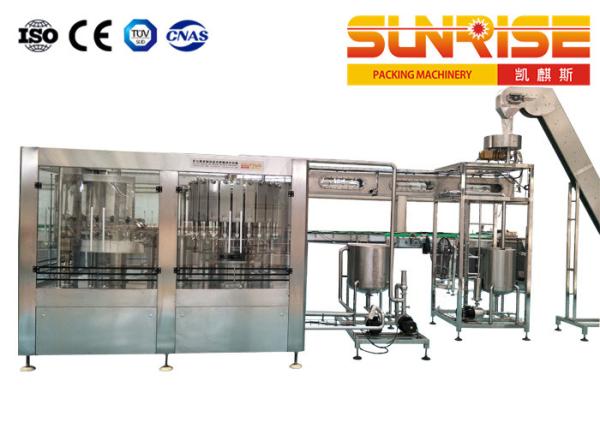

PET Automatic Liquid Filling Machine , Juice Filling Line 12000BPH

  • 1
  • 2
  • 3

Brand Name : SUNRISE

Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO

Place of Origin : Jiangsu, China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 6 units per year

Delivery Time : 120 days

Packaging Details : Standard shipping wooden box or stretch film packaging

Price : Negotiable

Model Number : KQSHF-10

Application : Spring water / mineral water / pure water / non-gas wine drink and so on

Production capacity(500ml) : 10000-12000BPH

Certificates : CE / SGS / ISO 9001/ CCC

Number of washing, filling and capping heads : heads 32-32-10

Contact Now

Automatic PET hot-filling whole bottle washing, filling, capping and filling machine

Technical parameters:

Model KQSHF-10
Application Spring water / mineral water / pure water / non-gas wine drink and so on
Number of washing, filling and capping heads 32-32-10
Production capacity(500ml) 12000-14000
Filling precision ±3mm(liquid level)
User Ambient Conditions

Temperature:10~40℃;

Humidity: No dew
Suitable bottle specification

Volume=500-2000ml

Diameter φ=50-106mm

Bottle height H=180 ~340mm
Machine material Food stage SS304 OR SS316
Air source pressure (Mpa) 0.5-0.6
Power(kw)6.6 6.62kw
Control System SIMENS PLC
Power Supply

Voltage:220V~4150V,3phase;

Frequency:50HZ/60HZ or your requirement
Overall dimensions (mm) 3200*2880*2500
Weight (kg) 8000
Certificates CE / SGS / ISO 9001/ CCC

SUNRISE KQSHF series washing filling and capping machine:

Model

Number of washing, filling

and capping heads

 Production capacity(500ml)
KQSHF-06 16-12-6 3000-4000BPH
KQSHF-06A 18-18-6 5000~6000BPH
KQSHF-08 24-24-8 10000BPH
KQSHF-10 32-32-10 14000BPH
KQSHF-12 40-40-12 18000BPH
KQSHF-12A 50-50-12 20000BPH
KQSHF-15 60-60-15 24000BPH
KQSHF-15A 72-72-18 28000BPH

Application products:

This is a high-standard advanced touch screen PLC base rotating PET bottle washing, filling and capping machine in China. This machine is mainly used for cleaning, filling and capping of mineral water, milk, ice tea, still wine, and juice hot filling. The design of the machine shortens the packaging time of PET bottles, reduces external pollution, and increases the sanitary condition of the entire machine, and is very suitable for economic investment.
